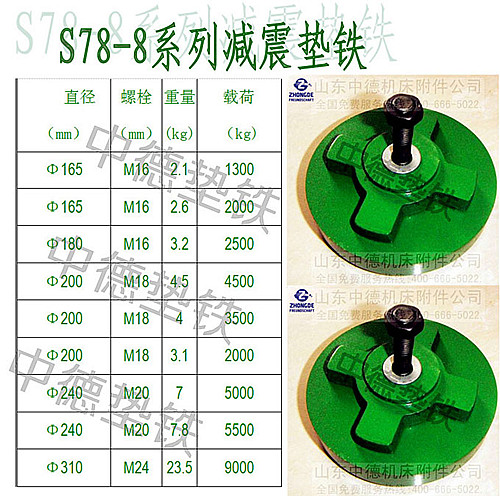

S78-8系列机床减振垫铁适用范围:
金属切削机床、锻压机床、橡胶机械、纺织、轻工机械、
食品加工机械、发电机组、泵体。
Application :
Metalcutting machine, Metalforming machine, Printing machine, Rubber and plastic machines, Spinning machines , light industry machines , Food process machines, Generator and Pump machine.
S78-8系列机床减振垫铁产品特点：
1、 安装机床不需埋设地脚螺栓，缩短安装周期，节省安装费用。
2、 根据生产工艺变化，随意调整机床位置，实现生产流水线柔性化设计。
3、 调整机床水平方便,迅速。
4、 隔振、减振,降低噪音。
5、 耐油性，耐腐蚀性强
Feature of product:
1. Machines are stationary on floor without anchors. Therefore the cost and time of installation can be greatly saved.
2. The layout of machines can be changed freely according to the modification of manufacturing process. So it is easy to design the flexible production line.
3. It is convenient and quick to adjust the level of machine.
4. Vibration and noise can be reduced and isolated by using this product.
5. It can resist oil and corrosion greatly.
S78-8系列机床减振垫铁使用方法：
1.将所需垫铁放入机床地脚孔下，穿入螺栓，旋至和承重盘接触实。
2.进行机床水平调节（螺栓顺时针旋转，机床升起）。
3.机床水平后，锁紧螺母，固定水平状态。
注意：因为橡胶的蠕变现象，在垫铁第一次使用时，两星期以后再调节一次机床水平。
How to install:
1.Place the mounts under the anchor hole of the machine. Insert the bolt into the screw hole of mount. And screw it in until it reaches the bearing plate.
2.Adjust the level of machine （screw the bolt clockwise then lift the machine ）
3.Tighten the nuts after adjust the level of machine.
Note :
The level of machine should be readjusted after two weeks in use because the rubber may creep when it is used firstly.
